Rocket R9

Rocket R 9 1. 2 & 3 Group Dual Boiler

Full factory One-year parts warranty due to defective parts. 90-day labor

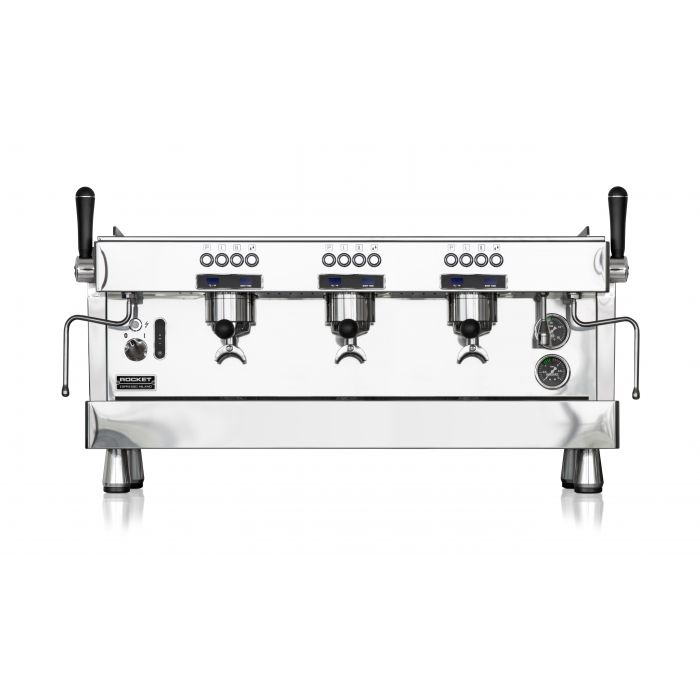

Overview Rocket Espresso's answer for cafés the world-over, the R9 automatic espresso machine offers a design dedicated for individual control of each brew group.

Each group head has its own 1.9-liter brew boiler, variable temperature PID, shot timer, and automatic control cluster.

Supporting this granular system is a massive steam boiler equipped with sensitive pressure transducers that help reduce recovery times for your busiest mornings. Of course, the service-ready design of the internals come wrapped in Rocket Espresso's sturdy polished steel casing.

In designing the Rocket Espresso R 9, engineer Ennio Berti opted for a fully saturated group to further enhance machine temperature stability through PID control in the stainless steel multi boiler machine.

Pressure transducer technology was used to dramatically reduce steam pressure recovery times, increasingly important in high-volume cafes.

Aesthetically the R 9 shares the contemporary look that sets Rocket Espresso machines apart from others, with a lowered machine height that allows for better interaction between the barista and the customer.

The digital display features boiler temperature adjustable in increments of 0.1 degrees Celsius and shot timers for each group.

Absolute can coordinate the installation of your espresso machine with a trained, local representative. Includes, Hookup to buyer made ready water, electric & drink set up, demonstration. One-year parts & 90-day labor due to defective parts,

FEATURES:

• Dedicated Boilers: individual brew boilers for each group and a large quick-recovery steam boiler offer consistent temperatures all day long.
• Executive Electronics: PID temperature control for each boiler, high-tech transducer pressure sensors, and automatic shot timers make the R9 easy to use for busy baristas.
• CoolTouch Steam Wands: No more burnt fingers! These steam wands can be grabbed without worry even under high use.
• Stainless Steel Elegance: The R9 features a high-quality polished stainless-steel body that defines Rocket Espresso.
• Barista Basics: Tall feet and a low control stance put the R9 control cluster within easy reach. No-burn steam wands are easy to clean and save precious minutes when it counts.

• Programmability Milk Temperature, PID,

  Pre-infusion, Profiles,

  Shot Timer, Temperature

  Case Material Polished Stainless Steel

  Boiler Material Stainless Steel

• Cup Clearance 3.5 inches

1 Grp Specifications

Width 16.2 inches Depth 20 inches Height 17 inches

Product Weight (lbs.) 112

Watts 1600W Volts 120V

Boiler Volume 1.9 L Brew | 3.6 L Steam

Reservoir Size 2.5 liter

Solenoid Valve Yes

Cup Warmer Yes

Portafilter Size 58mm

Available Portafilters Bottomless,

Non-Pressurized Boiler Design Double Boiler

Certified to NSF/ANSI Standards

No Water Sources Convertible - Internal Reservoir or Plumbed in

Auto On Yes

2 Grp Specifications

• Height: 2 Group: 19.6"
• Width: 2 Group: 30"
• Depth: 2 Group: 23.2"
• Watts: 2 Group: 5900W
• Volts: 2 Group: 220V
• Boiler Volume:
• 2 Group: 2x 1.9 L brew boilers; 9 L steam boiler

• 3 Grp Specifications

• Height:  3 Group: 19.6"
• Width: 3 Group: 39"
• Depth: 3 Group: 23.2"
• Watts:  3 Group: 7700W
• Volts: 3 Group: 220V
• Boiler Volume:
•  3 Group: 3x 1.9 L brew boilers; 12 L steam boiler

• Installation Package includes up to 2.5 hours labor & 1 Hr. travel of certified technician service.

Requirements: 1. Plumbing, drain, and electrical must be in place and complete per the manufacturer's installation specs prior to installation. 2. Water filtration is required and not included in the installation package. 3. Water Requirements - 3/8" dedicated cold-water line with shut off valve and compression fitting - water hardness must be between 3-5 grains per gallon or 50-85 ppm - A water softener and/or filter needs to be installed if it exceeds the limits - Minimum incoming water flow rate of 35 GPH and the maximum line pressure of 70 PSI / 5 BAR Drain Requirements -Open gravity drain of minimum 1.25 inches within 4 feet of the machine. Extended length is posable at extra hose cost.

The installation package does not include general construction services (including but not limited to electrical wiring, water and drain plumbing, drilling countertops, the installation of other equipment, etc.). Additional travel costs may be required for locations outside of 50 miles or 1 hr. travel time.
